How to Build an AR-15 Step-by-Step: Parts, Tools & Tips

Building an AR-15 at home isn’t wizardry, it’s a checklist. With the right parts, a few purpose-built tools, and a clear plan, you can assemble a dependable rifle that runs every time you press the trigger. This guide shows you exactly how, answering cost, legal, and parts questions before a single pin moves. No guesswork, no shattered roll pins, and no YouTube rabbit holes—just a proven method that has helped thousands of first-timers finish a rifle they’re proud to shoot.

Along the way you’ll see why the AR-15’s Lego-like design makes it the perfect do-it-yourself project for hunters, competitors, and weekend plinkers alike—parts are plentiful, upgrades are endless, and mistakes are easy to avoid when you follow a logical order. We’ll start with legality, purpose, and budget, move into sourcing every component, set up a safe workspace, then walk through lower and upper assemblies before mating them and running live-fire tests. Read the entire roadmap first, gather everything you need, and your build will click together smoothly. Save money, learn your rifle, and enjoy the process.

Step 1: Confirm Legality, Purpose, and Budget Before You Buy

Before a single part hits your shopping cart, stop and make sure the build itself is legal, appropriate for its mission, and financially realistic. The modular nature of the AR platform doesn’t override federal law, state statutes, or the laws of physics—so taking ten minutes now can save weeks of returns, rejected background checks, or worse. Think of this step as the foundation for everything that follows in this guide on how to build an AR-15.

Federal Regulations Every Builder Must Know

At the federal level, the 1968 Gun Control Act (GCA) says you may manufacture a firearm for personal use without a license, provided the gun is not sold or transferred and is not a National Firearms Act (NFA) item. Translation:

• No federal license or Form 4473 is needed to build a standard, semi-automatic AR-15 for yourself.
• You may not manufacture a machine gun or an SBR (barrel <16" with a stock) unless you possess the correct FFL/Class 2 SOT or have an approved Form 1.
• If you later decide to sell the rifle you built, you now need an FFL—private builds are for personal use only.

Answering the common PAA question “Do I need a license to build an AR-15?” is simple: federally, no. Ignorance, however, is not a defense when an ATF agent knocks, so document your parts purchases and keep receipts.

State-Specific Rules, 80-Percent Lowers, and NFA Considerations

Some states add extra hoops:

• CA – Must engrave a state-issued serial before machining an 80% lower; “assault weapon” features list applies.
• NY, NJ – Require fixed magazines or featureless builds; homemade lowers generally outlawed.
• CT – Registration deadlines apply; check latest “other” firearm rulings.
• WA, IL, DE – Recent legislation limits or bans 80% receivers and certain parts kits.

Choosing an 80 percent receiver can boost privacy and teach machining skills, but it also triggers serialization, engraving depth requirements (≥.003" deep, 1⁄16" tall in CA), and potential wait times. If you’re in a restrictive state, a factory-serialized stripped lower transferred through an FFL is usually simpler.

Barrel length is another legal landmine. A sub-16" barrel with a riflestock creates an SBR; add a brace and you step into recent pistol-brace rule changes. When in doubt, stick with 16"+ or file a Form 1.

Define the Rifle’s Mission: Defense, Competition, Duty, or Plinking

Now that you know what you can build, decide what you should build. Your rifle’s mission sets every other spec:

• Home defense/car duty: 14.5" barrel pinned & welded or 16", lightweight handguard, red-dot optic.
• USPSA or 3-Gun: 18" stainless SPR, low-mass BCG, adjustable gas block, two-stage trigger.
• Precision/varmint: 20–24" heavy barrel, .223 Wylde or 6.5 Grendel, bipod-ready M-Lok rail.
• Budget blaster/train-with-kids: 16" .22 LR or 5.56 NATO, basic mil-spec components, irons first.

Mission also guides caliber choice, buffer weight, optic height, and even magazine selection, preventing the all-too-common “parts bin” build that excels at nothing.

Budget Your Build: Expected Costs for Parts, Tools, and Ammo

A clear ceiling keeps you from cannibalizing rent money for Cerakote. Typical spend ranges:

Tier	Parts Cost	Tools & Consumables (≈12 %)	Total Out-the-Door
Economical	$600–$800	$75–$100	$675–$900
Mid-Range	$1,000–$1,400	$120–$180	$1,120–$1,580
Premium	$1,800+	$200+	$2,000+

Factor in at least 200 rounds of ammo for break-in and zeroing—currently $0.35–$0.60 per round for brass-cased 5.56 means another $70–$120.

Also budget for tools you’ll reuse on future builds: an armorer’s wrench, torque wrench, vise blocks, and a hammerless pin tool like The AR-Takedown Tool often pay for themselves after one rifle.

With legality, purpose, and budget locked in, you can shop with confidence and avoid the two biggest rookie errors—ordering forbidden parts or under-funding the project. Let’s move on to selecting every component you’ll need.

Step 2: Select and Source Every Required Part

Shopping before you have a complete checklist is the fastest way to blow your budget and stall the build for weeks while back-ordered pieces trickle in. Print the sub-sections below, tape them to your bench, and check each box only after the part lands in your hands. Doing so guarantees every pin, spring, and detent shows up in the right spec and finish, sparing you the late-night realization that the forward-assist spring never made it into the cart. Remember, the AR-15 is a parts ecosystem—one out-of-spec item can snowball into misfeeds, broken bolts, or a rifle that won’t zero. Let’s walk through what belongs on that master list.

Core Components Overview: What Makes an AR-15 an AR-15

Below is the skeleton of a modern AR. Mil-spec dimensions keep most brands cross-compatible, but always confirm manufacturer notes.

Group	Critical Parts	Quick Notes
Lower Receiver	Stripped or 80% lower, lower parts kit (LPK), buffer tube, buffer spring & weight, castle nut, endplate	The serialized piece—treat like a firearm in most states
Fire-Control	Trigger, hammer, disconnector, springs, pins	Drop-in cassettes simplify install but cost more
Furniture	Grip, stock or brace, trigger guard	Mil-spec vs commercial tube diameters differ by .02"
Upper Receiver	Stripped upper, forward assist, ejection-port cover	“A3” flat-tops accept optics without carry-handle
Barrel Assembly	Barrel, barrel nut, gas block, gas tube, muzzle device	Mid-length gas on 14.5–18" is a sweet spot for recoil
Operating Group	Bolt carrier group (BCG), charging handle	Properly staked carrier key prevents gas loss
Handguard	Free-float or drop-in rail, mounting hardware	M-Lok is lighter; Picatinny is bomb-proof
Sights/Optic	BUIS, red dot, LPVO, mounts	Budget 10–25 % of total build for glass
Misc.	Magazines, sling attachments, QD cups	Buy mags in threes—test them as part of reliability checks

Tip: lay small springs and detents on a white towel; they bounce less and show up easily under light.

Stripped Lower vs 80-Percent Receiver: Pros, Cons, and Legalities

Feature	Stripped Lower	80 % Lower
Up-Front Cost	$70–$150	$40–$120 (plus jig)
FFL Transfer	Yes, Form 4473	No federal paperwork*
Machining Required	None	Drilling & milling pockets
Resale Later	Legal like any firearm	Often restricted or impossible
Legal Gray Areas	Few	Banned/serialized in CA, NY, NJ, WA, IL, DE

*State laws vary; some now treat 80 % receivers as firearms. Always verify before purchase.

Unless you want the DIY machining experience or extra privacy, a factory-serialized stripped lower is generally faster, cheaper once tooling is considered, and easier to insure or resell.

Choosing the Best Caliber for Your Goals

“Which round should I chamber?” dominates search threads on how to build an AR-15. Match cartridge to mission:

• 5.56 NATO / .223 Wylde – All-purpose, cheap ammo, 30-round standard mags.
• .300 AAC Blackout – Superior from 9-11" barrels and suppressed use; retain standard bolt.
• 22 LR – Ultra-low recoil and cost; needs dedicated bolt, barrel, and mags.
• 9 mm – Pistol-caliber carbines excel indoors; requires blowback BCG and Glock/Colt pattern mags.
• 6.5 Grendel / 6 mm ARC – Stretch legs to 800 yds; swap bolt face and mags.

Non-5.56 builds usually require a specific bolt and sometimes new magazines—budget an extra $100–$250 for those changes.

Quality vs Price: Identifying Trustworthy Manufacturers

“Mil-spec” means it meets a written spec sheet, not that it was built for the military. Vet parts by material, treatment, and track record:

• Barrels: 4150 CMV or 416R stainless, QPQ nitride or chrome-lined. Look for brands that HP/MPI test every barrel (e.g., Ballistic Advantage, Criterion).
• BCGs: Carpenter 158 or 9310 bolts, properly torqued & staked keys. Cobalt, nickel-boron, and nitride coatings ease cleanup but don’t replace good steel.
• LPKs: Phosphate-coated fire-control pins, tempered springs. Avoid no-name “mystery metal” kits under $40.
• Rails & Receivers: 6061 is fine for range toys; 7075-T6 is stronger for duty rifles.

When in doubt, read verified buyer reviews, armorers’ forums, and manufacturer QA statements.

Where to Buy: Online Retailers, Local Gun Shops, and Kits

1. Online Retailers

   • Larger inventory and frequent sales. Check shipping policies on serialized lowers—they must ship to your chosen FFL.
   • Verify compatibility filters before checkout to avoid carbine-length buffers on rifle-length stocks.

2. Local Gun Shops (LGS)

   • Immediate visual inspection, no shipping fees for lowers, and a go-to spot for background checks.
   • LGS staff often price-match major websites if you ask politely.

3. Parts Kits & Bundles

   • Complete “upper kits” or “blem deals” from reputable outlets can shave 10–15 % off individual pricing.
   • Ensure barrel nut/rail compatibility; some proprietary systems force brand loyalty down the road.

Pro Tip: Download a parts-exploded diagram PDF to your phone. When a flash sale pops up, you’ll know instantly if the component fits your gas system or receiver thread pitch.

By building a bulletproof checklist—and sticking to vetted brands and reliable vendors—you’ll sidestep the inventory minefield and keep momentum high. Up next, we’ll set up a workspace and assemble the tool kit that saves finishes, fingers, and your sanity.

Step 3: Gather the Right Tools and Set Up Your Workspace

Quality parts won’t help if you round bolt heads or scratch anodizing on day one. Before learning how to build an AR-15, carve out a work zone and stock it with tools that fit the job. A solid bench, bright lighting, and organized storage remove frustration and keep tiny springs from launching into the abyss. Spend a few minutes up front and the actual assembly feels less like surgery and more like snapping Lego bricks together.

Essential Gunsmithing Tools Checklist

• Armorer’s wrench (castle-nut, muzzle, and barrel-nut spanner)
• Torque wrench, ⅜" drive, 30–80 ft-lb range
• Receiver vise blocks (upper and lower)
• Roll-pin punch set, starter & finishing sizes
• Castle-nut wrench adapter for torque reading
• Dead-blow or ball-peen hammer (8–12 oz)
• Pivot-pin install tool or clevis pin trick
• Headspace gauges (GO/NO-GO)
• Feeler gauges for gas-block alignment
• Needle-nose pliers & dental picks for springs
• Bench vise with smooth or nylon jaws
• Safety glasses and nitrile gloves

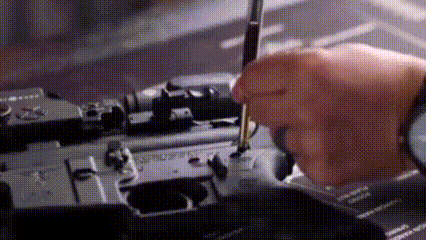

The Hammerless Advantage: Using The AR-Takedown Tool for Pins & Detents

Traditional punches plus a hammer work, but they also bounce, mar receivers, and wake the neighbors at midnight. The 2-oz AR-Takedown Tool from The Takedown Tools applies more than 5,000 PSI in a controlled squeeze, driving roll pins straight without peripheral damage. Example: to seat the bolt-catch pin, align the catch, snug the tool’s non-marring tip against the pin, and tighten until flush—no taped-up receiver walls or three-handed balancing act required. One pocket-sized multi-tool replaces roll-pin starters, hammers, and tweezers, making field repairs just as painless.

Safety Gear and Consumables You’ll Go Through

• Blue Loctite for handguard screws, red for muzzle devices you never plan to remove
• Aeroshell 33MS or similar grease on barrel extension & receiver threads
• CLP for initial lubrication and post-range cleanup
• Painter’s tape to protect finish while driving pins
• Torque-striping paint to verify fasteners stay put
• Shop rags, cotton swabs, canned air, and a magnetic parts tray

Organizing Your Bench for Success

Mount the vise on the far corner of a sturdy bench so barreled uppers clear the tabletop when rotating. Lay a non-marring mat under the lower receiver and keep labeled Ziplocs or tackle-box dividers ready for each sub-assembly. Tape an exploded-view diagram to the wall for quick reference and place a small white towel under the work area—springs that hit terrycloth tend to stay put. With tools staged and space dialed in, the rest of the build becomes a straightforward sequence instead of a scavenger hunt.

Step 4: Build the Lower Receiver Assembly

The lower receiver is where small mistakes snowball into gritty triggers, stubborn magazine drops, or lost detents. Slow down, stage every spring in order, and work left-to-right so you always know what comes next. Placing the stripped lower in a bench block keeps both hands free, while a white towel under the work zone catches launches you never saw coming. Have your AR-Takedown Tool or roll-pin punches within reach, painter’s tape on standby, and the parts diagram printed beside you. With everything laid out, the following sub-steps flow logically and prevent the dreaded “Where does this tiny coil spring go?” moment.

Install Magazine Catch, Bolt Catch, and Pivot Pin Like a Pro

1. Magazine Catch

   • Insert the catch button side through the right wall.
   • Thread the mag-catch shaft from the left and spin three full turns.
   • Depress the button with a punch and rotate the catch until flush. Test with an empty mag—should lock and drop freely.

2. Bolt Catch

   • Mask the receiver walls with painter’s tape.
   • Place the bolt catch and spring/plunger in their pockets.
   • Use the AR-Takedown Tool’s non-marring tip to press the roll pin through in controlled increments; stop when the pin is centered. Zero hammer strikes, zero scratches.

3. Pivot Pin

   • Insert the detent spring, then the detent, holding both down with a razor blade or pivot-pin tool.
   • Slide the pivot pin in from the right, rotate 90°, and release pressure. The detent should click into the groove and allow smooth rotation without backing out.

Pro Tip: Keep a clear zip-top bag over the pivot-pin area while working. If the detent launches, the bag catches it.

Trigger Group: Single-Stage vs Two-Stage and Installation Steps

A mil-spec single-stage trigger is budget friendly and dead reliable, while a two-stage offers a short “take-up” followed by a crisp break appreciated in competition or precision roles. Installation is identical:

1. Seat the trigger spring “legs” pointing forward, drop the disconnector spring (larger coil up) into the trigger body, then set the disconnector.
2. Align the holes and press the trigger pin from left to right—again, the AR-Takedown Tool can act as a slave pin, simplifying alignment.
3. Install the hammer with its spring legs resting atop the trigger pin; drive the hammer pin through.
4. Function check: On SAFE the hammer must not fall; on FIRE pull, hold, reset—listen for an audible click and confirm full travel.

Optional drop-in cassettes only require anti-walk or KNS pins torqued to the manufacturer’s spec (usually 4–5 in-lb). Lightly oil contact surfaces once installed.

Buffer Tube, Endplate, and Castle Nut: Proper Torque and Staking

The buffer assembly anchors the action spring and sets receiver extension length, so it pays to get this right the first time.

1. Thread the castle nut onto the buffer tube, then the endplate (tangs toward receiver).
2. Apply a thin coat of grease to the rear takedown detent spring channel.
3. Thread the buffer tube until it almost covers the buffer-retainer hole. Drop in the retainer and spring, then rotate the tube a quarter-turn to capture it.
4. Align the endplate, ensuring the rear-takedown spring seats in its trench, and hand-tighten the castle nut.
5. Use a torque wrench with a castle-nut adapter: 38–42 ft-lb.
6. Stake the nut in two spots with a center punch or the staking nib on an armorer’s wrench to prevent rotation under recoil.

Attach Stock or Brace and Adjust Length of Pull

Mil-spec buffer tubes measure 1.148", commercial tubes 1.168"—match your stock accordingly. Slide the stock or brace fully rearward, depress the locking tab, and adjust to your preferred length of pull (usually elbow at 90° when gripping). For pistol configurations, verify current ATF guidance on braces before installation; rules have been fluid.

Perform a Lower Receiver Function Test

Run this checklist before mating the upper:

• Selector on SAFE, pull trigger: hammer must stay.
• Selector to FIRE, pull trigger and hold; keep trigger pressed while cycling the hammer, then release—listen for reset click.
• Insert an empty magazine: bolt catch should engage when manually retracting a charging handle or dummy BCG. Press the bolt-release paddle—catch should drop.
• Drop the magazine using the catch; it must fall free under gravity.
• Cycle the takedown and pivot pins: they should push through with firm thumb pressure but not drift under shake.

If any step fails, diagnose now—not after the upper hides the issue. A properly assembled and tested lower guarantees the rest of the build proceeds smoothly, saving range time and ammo.

With a battle-ready lower validated, you’re halfway home. Secure it in the vise for safekeeping; next, we’ll move to the upper receiver—the part most responsible for accuracy and reliability.

Step 5: Build the Upper Receiver Assembly

With a proven lower set aside, attention turns to the half of the rifle that dictates accuracy, dwell time, and reliability. Take your time here—minute mistakes in the upper cause extraction issues, gas leaks, and POI shifts that cheap optics can’t fix. Lock the stripped upper in a vise block, double-check all small parts are on the mat, and keep a torque wrench within reach. Once the receiver is secure and level, move in the order below so you never trap one part behind another.

Barrel Installation, Indexing, and Torque Procedure

A solid barrel seat begins with clean threads. Wipe the receiver and barrel extension with degreaser, then brush on a pea-sized dab of Aeroshell 33MS to prevent galling and future seizure.

1. Hand-thread the barrel nut until finger-tight.
2. Using the armorer’s wrench and torque wrench, snug to 35 ft-lb, loosen, and repeat twice—this sets threads.
3. Final torque: tighten to 35–80 ft-lb, stopping on the lowest value that aligns a gas-tube channel. Over-torque risks accuracy‐killing receiver flex, so resist the urge to “crank it.”
4. Confirm the index pin on the barrel extension fully seats in the receiver notch; any gap means start over and clean debris.

Tip: Apply witness paint across the nut and receiver after torqueing so you can spot movement during later maintenance.

Free-Float vs Drop-In Handguard Attachment

Feature	Free-Float Rail	Drop-In/Clamp-On
Accuracy Impact	Isolates barrel → .5–1 MOA gain	Contact with barrel → POI shifts possible
Installation	Requires proprietary barrel nut, torque spec	Uses delta ring or simple clamp, no torque
Accessory Slots	M-Lok/KeyMod spans full length	Limited rails, heat shields in the way
Weight	Slightly heavier but better balance	Lightest, cheaper

If you choose free-float, slide the rail over the proprietary nut, ensure anti-rotation tabs seat flush, then torque side or top screws to 25 in-lb with blue Loctite. For drop-ins, compress the delta ring, fit both halves, and release.

Gas Block and Tube Alignment: Pinning or Set-Screw

Proper gas delivers consistent cycling and brass at 3–4 o’clock. Follow this order:

1. Insert the gas tube into the block with the port facing downward; roll-pin from left to right until centered.
2. Slide the assembly over the barrel, aligning the block’s gas port with the barrel’s (use a 1⁄16" feeler gauge as a visual).
3. Set-screw blocks: torque each screw to 25 in-lb, apply Rocksett, and stake into pre-cut dimples if available.
4. Clamp-on or pinned blocks: torque clamp screws to manufacturer spec or drive taper pins small-end first.
5. Drop a cleaning rod through the muzzle to ensure it passes cleanly through the gas tube—any bind equals misalignment.

Forward Assist & Ejection Port Cover

These parts are often ignored until they rattle loose at the range. Install in this sequence so springs don’t fight you:

1. Ejection-port cover: place the door on its hinge, slide the rod from rear to front just past the detent hole, rotate the spring 180°, then push the rod home.
2. Forward assist: insert spring, align the pawl forward, and start the roll pin. A third hand helps, but the AR-Takedown Tool can hold the pin while you tap it flush without scratching the receiver.

Function check: push the assist; it should spring back and pawl into the BCG channel.

Bolt Carrier Group and Charging Handle Prep

A properly serviced BCG is the heartbeat of the rifle:

• Gas rings: stagger gaps so none align. Drop the bolt into the carrier and stand it on the face; if the bolt collapses under its own weight, rings need replacement.
• Carrier key: verify screws sit at 55 in-lb and are double-staked.
• Lubrication points: light oil on cam pin, bolt lugs, gas rings, and carrier rails; grease is overkill here.
• Charging handle: smear a thin film where it rides inside the upper; check the latch for positive lock.

Slide the charging handle part-way in, nest the BCG under it, and push both until fully seated. Cycle by hand—you should feel butter-smooth travel and hear the gas rings compress without scratching.

With the upper torqued, timed, and lubricated, you now have two complete halves ready to marry. Secure the finished upper in a padded case or set it on the bench; next up, we’ll pin everything together and prove the rifle safe before its first live round.

Step 6: Mate Upper and Lower & Conduct Safety Checks

With both halves finished, this step turns two sub-assemblies into a working rifle. Work over a padded mat, keep the AR-Takedown Tool or a nylon punch handy, and resist the urge to force anything—tight pins now often signal a buried tolerance issue that will haunt you later.

Seat the Takedown and Pivot Pins Without Over-Tension

1. Set the lower in the vise block, front facing left.
2. Hook the upper’s front lug between the lower’s pivot-pin ears and slide the pivot pin home with firm thumb pressure. You should feel a distinct “click,” not a crunch.
3. Rotate the upper downward until the rear lug aligns; press the takedown pin through.
4. If either pin needs a hammer, stop and check receiver coating, burrs, or misaligned buffer retaining pin.

Smooth, tool-free movement here predicts drama-free field stripping later.

Verify Headspace and BCG Lock-Up

• Remove the BCG, insert the “GO” gauge in the chamber, reinstall BCG, and ease the bolt forward using the charging handle. It must close fully.
• Repeat with the “NO-GO” gauge; the bolt must not close.
• Fail either test? Contact the barrel manufacturer—do not fire.

This 30-second check prevents catastrophic pressure spikes and cracked lugs.

Full Function and Safety Tests Before Ammo

Cycle these with an unloaded rifle:

• Selector on SAFE: pull trigger—hammer shouldn’t fall.
• Selector to FIRE: pull trigger, keep it pinned, rack the charging handle; slowly release—listen for reset click.
• Insert empty mag, rack bolt: should lock open; press bolt catch—carrier slams shut.
• Tug magazine again—it must drop free.
• Charge and ride the bolt home; ensure carrier key glides over the gas tube without catching.

Any failure here is cheaper to fix at the bench than at the range.

First Cleaning and Lubrication

Wipe the barrel with a solvent patch to remove assembly grease, then run a dry patch until it comes out clean. Add two drops of CLP on bolt lugs, one on the cam pin, and a light film on the buffer spring. Your new rifle is now mechanically sound, slick, and ready for live-fire proofing in Step 7.

Step 7: Sight-In, Break-In, and Reliability Testing at the Range

Paper targets, a few tools, and a notebook are all that stand between a fresh build and a proven rifle. The goal of this step is simple: confirm the gun prints where the sights look, smooth out any burrs with live fire, and root out malfunctions while you’re still on home turf, not during a match or midnight bump in the night. Think of it as the final exam for everything you’ve learned about how to build an AR-15.

Proper Bore-Sighting and 25/50/100-Yard Zero Methods

Start with a laser bore-sight or the old “pull the bolt and look through the barrel” trick at 10 yards to get on paper. Move to 25 yards and fine-tune until impacts sit 1 inch low of point of aim; this will put you very close at 50. Confirm at 50 yards for an “improved battle zero” (hits stay ±2 inches out to 200). Precision rigs should stretch to 100 yards and adjust elevation for your exact load.

Barrel Break-In: Separating Myth from Science

Modern nitride or chrome-lined barrels rarely need the shoot-one-clean ritual. Instead, fire 5-shot strings, let the barrel cool to the touch, and clean lightly every 20–30 rounds for the first 100. Watch groups tighten as carbon fills microscopic tooling marks; if accuracy is already sub-MOA, skip extra cleaning and just keep it lubed.

Reliability Run-Down: Function Test Under Live Fire

• 50 slow-fire rounds, single loading each mag to verify bolt lock-back
• Two-round drills: check auto-sear surfaces for hammer follow
• Full magazine dump to heat-soak the gun; brass should eject 3–4 o’clock
• Mix brands of ammo and magazines to expose tolerance stacking
• Inspect spent casings for swipes, bulges, or pierced primers—signs of over-pressure or timing issues

Keep a Build Log

Record data while it’s fresh; trends reveal themselves fast.

Round #	Ammo Type	Malfunction	Corrective Action	Weather Notes
0–50	XM193	None	N/A	78 °F, dry
51–100	55gr FMJ	FTF ×1	New magazine	82 °F, dusty

A tidy log clarifies whether problems are break-in quirks or recurring gremlins. Bring it to every range trip and your rifle’s history writes itself.

Step 8: Troubleshoot Issues, Maintain the Rifle, and Plan Upgrades

Even the best-planned builds hiccup. Springs settle, coatings wear in, and tolerance stacks reveal themselves only after a few hundred rounds. The cure is a simple loop: diagnose, correct, retest. Once reliability is locked in, a sensible maintenance cadence and a short list of smart upgrades will keep your rifle shooting—and legal—for years.

Diagnosing Feeding, Extraction, and Cycling Problems

Use this quick decision tree when something goes sideways:

• Failure to Feed

  • Swap magazine → still jams?
  • Check gas block set-screws and gas-tube alignment → good?
  • Inspect buffer weight; too heavy can short-stroke 5.56 loads.

• Failure to Extract

  • Examine extractor spring/o-ring; replace if worn.
  • Look for carbon build-up in chamber.
  • Verify gas key staking—loose screws leak pressure.

• Short-Stroke or No Lock-Back

  • Confirm gas port isn’t obstructed.
  • Test with known hot ammo.
  • Move to lighter buffer or adjustable gas block setting.

Keep fired brass; dents, swipes, or torn rims point directly at timing or pressure issues.

Routine Cleaning Schedule and Time-Saving Tools

• Field strip and wipe down every 300–500 rounds.
• Deep clean the BCG and chamber every 1,000 rounds or after a rain-soaked range day.
• The AR-Takedown Tool pops takedown pins and bolt-catch pins without a hammer, shaving minutes off disassembly and sparing your receiver finish.
• Use CLP on moving parts; a dab of high-temp grease on the barrel nut threads at every torque check.

High-Impact Upgrades Once the Rifle Is Proven

• Optic: LPVO for 0–600 yd versatility, or red-dot + magnifier for speed.
• Muzzle Device: Tuned brake for competition, or flash hider if shooting at night.
• Trigger: A 3.5-lb two-stage drops split times without sacrificing safety.
• Ambidextrous Controls: Charging handle, safety, and mag release improve manipulation for lefties or awkward barricades.

Stay Legal When Modifying: SBRs, Suppressors, and State Bans

Changing barrel length or adding a can can shift your rifle into NFA territory. Before installing:

1. File ATF Form 1 (SBR) or Form 4 (suppressor) and wait for approval.
2. Engrave applicant name, city, and state on the receiver for Form 1 builds.
3. Keep a digital and paper copy of the tax stamp with the firearm—some states require it on demand.
4. Re-check state feature lists; a new flash suppressor or folding stock can flip a formerly compliant rifle into the “assault weapon” column overnight.

Treat upgrades with the same diligence you applied to the initial build, and your custom AR-15 will run—and stay legal—for decades.

Your Custom Rifle Awaits

You just walked the full arc—from sanity-checking laws and jotting a parts list to torquing the barrel nut, staking the castle nut, and proof-firing at the range. If you took your time, verified each step, and documented results in a build log, you now own more than a gun; you understand every spring and screw inside it. That knowledge pays dividends when a match timer starts or a coyote steps into view, because troubleshooting is second nature and upgrades are as simple as swapping Lego bricks.

Keep the momentum by sticking to a light cleaning schedule, logging round counts, and replacing wear parts before they fail. When the itch to build again hits—and it will—you’ll already have the vise blocks, torque wrench, and best of all, a hammer-free method for driving pins.

Ready to shave hours off your next project or speed up routine maintenance? Check out the USA-made, pocket-size multi-tools from The Takedown Tools—they’re the same hammerless workhorses used throughout this guide and a smart way to keep every future build fast, clean, and scratch-free. Happy shooting, and enjoy the rifle you built with your own hands.
